PanelPro is a brand-agnostic panel design tool built for speed. Draw the plate, snap gear onto DIN rail, and terminals number themselves — while the BOM and true-to-scale drawings stay ready to issue. In the browser, nothing to install.
FREE PLAN · 14-DAY PRO TRIAL · NO CARD REQUIRED
VIEW A — BACKPLATE LAYOUT

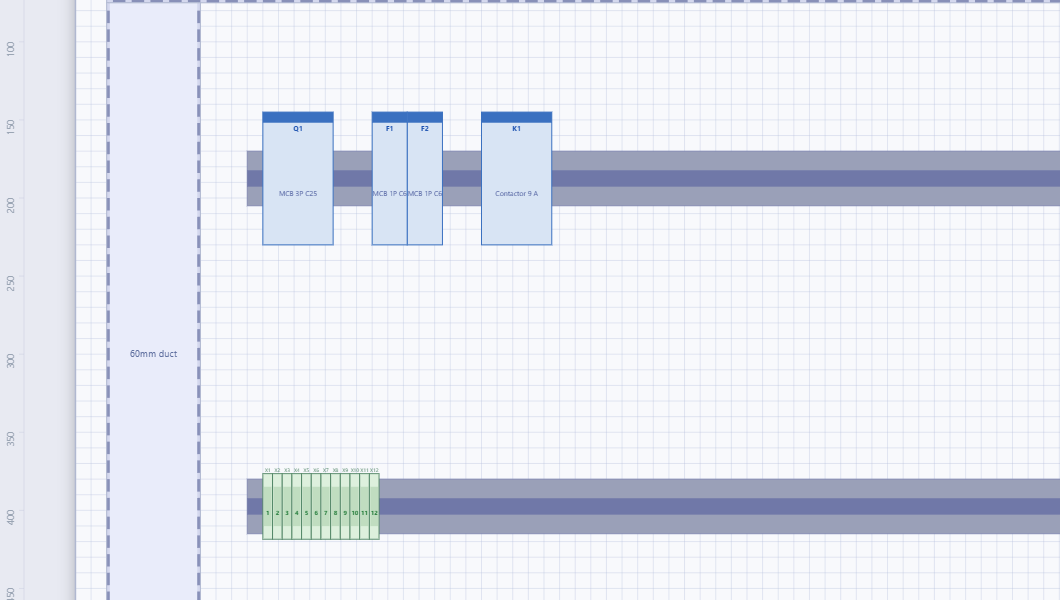

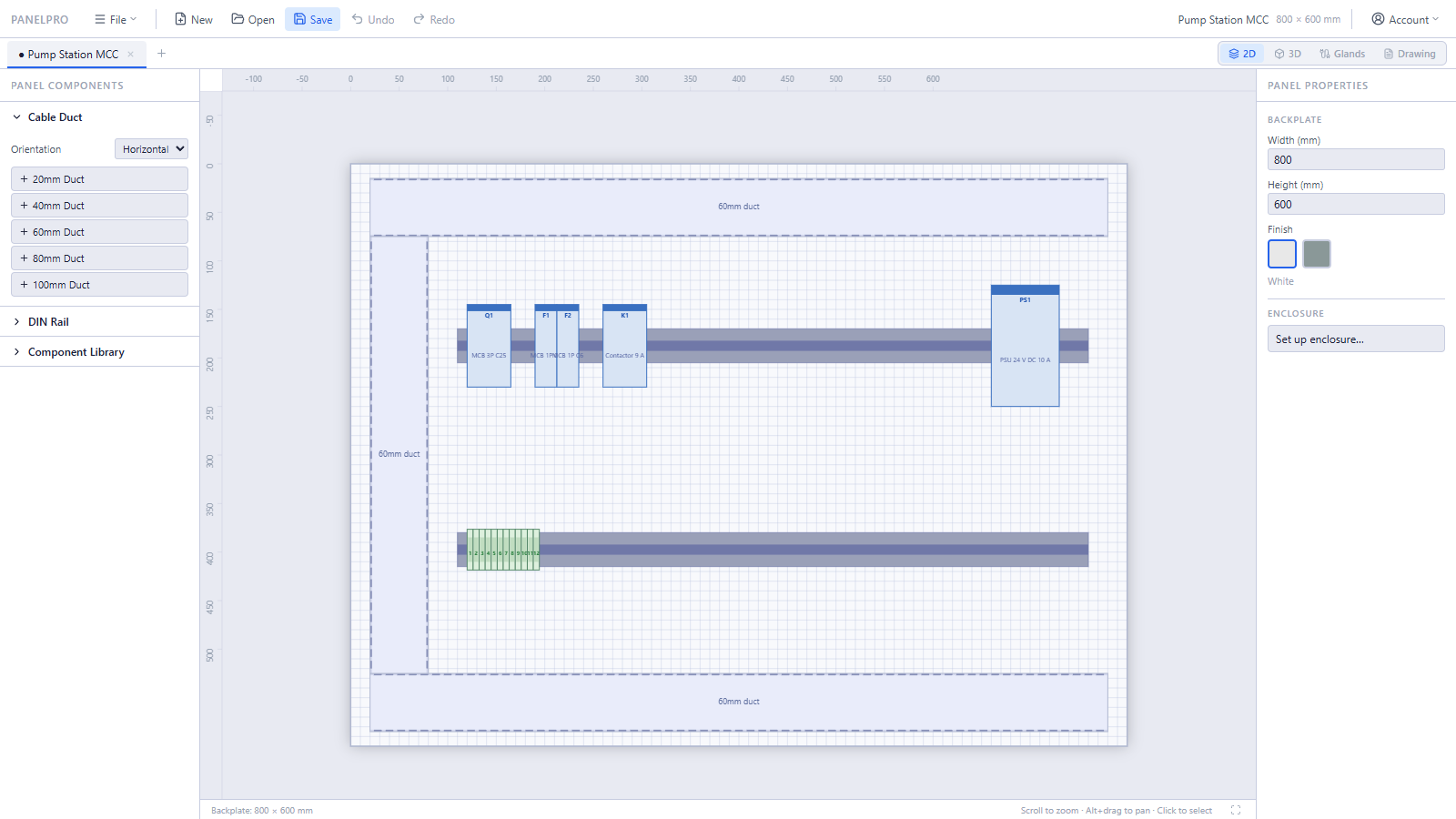

Draw the plate, run finger duct, drop DIN rail, and snap components straight onto it — every part lands aligned to the rail. Terminals number themselves as you place them: X1 to X12 without touching the keyboard.
VIEW B — ISSUED DRAWINGS

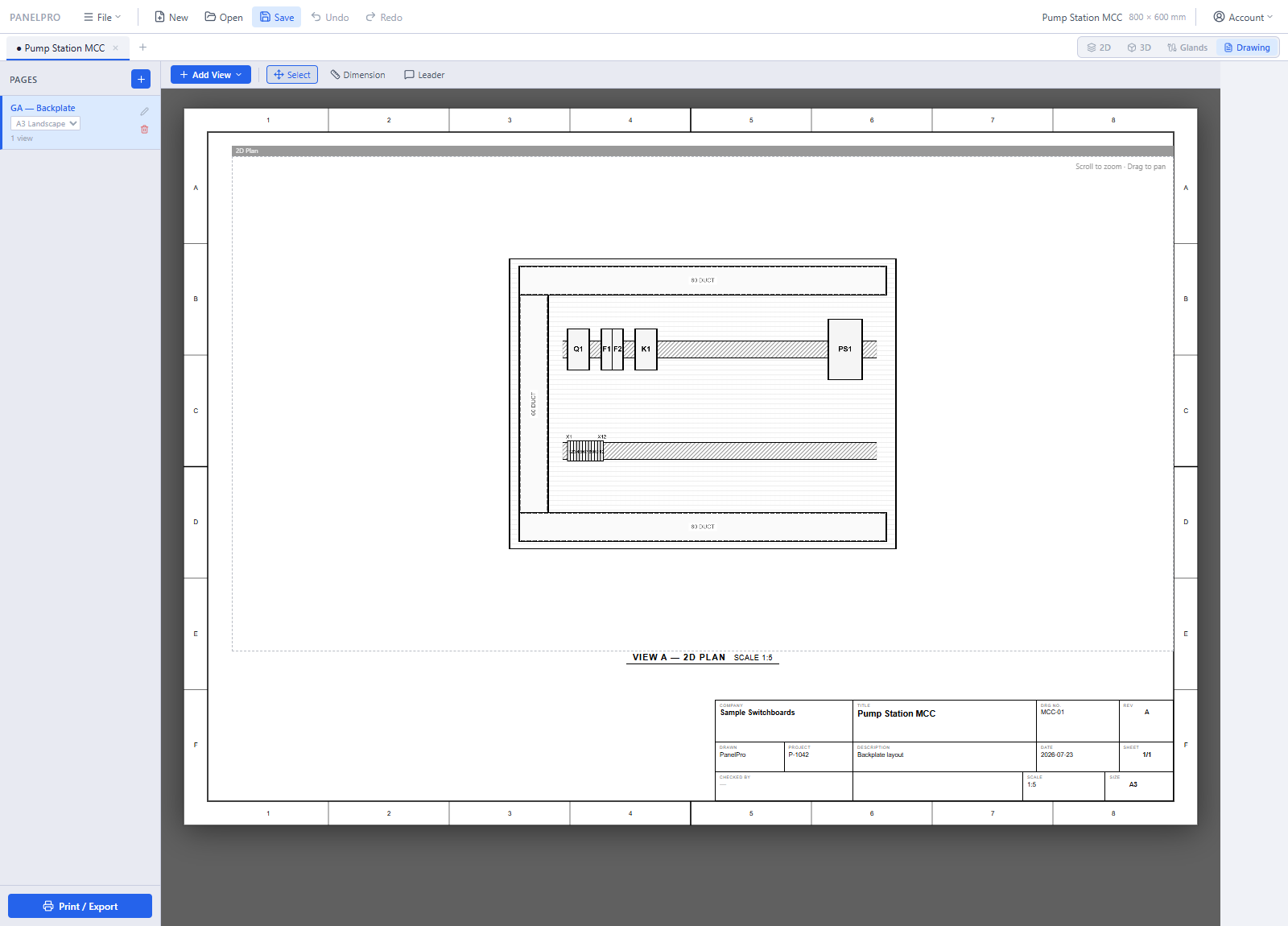

The sheet is ready the moment the layout is. One click adds a zone-referenced view with ISO linework and an editable title block — then print true-to-scale PDFs straight from the browser at any sheet size from A4 to A1.
VIEW C — 3D & STEP MODELS

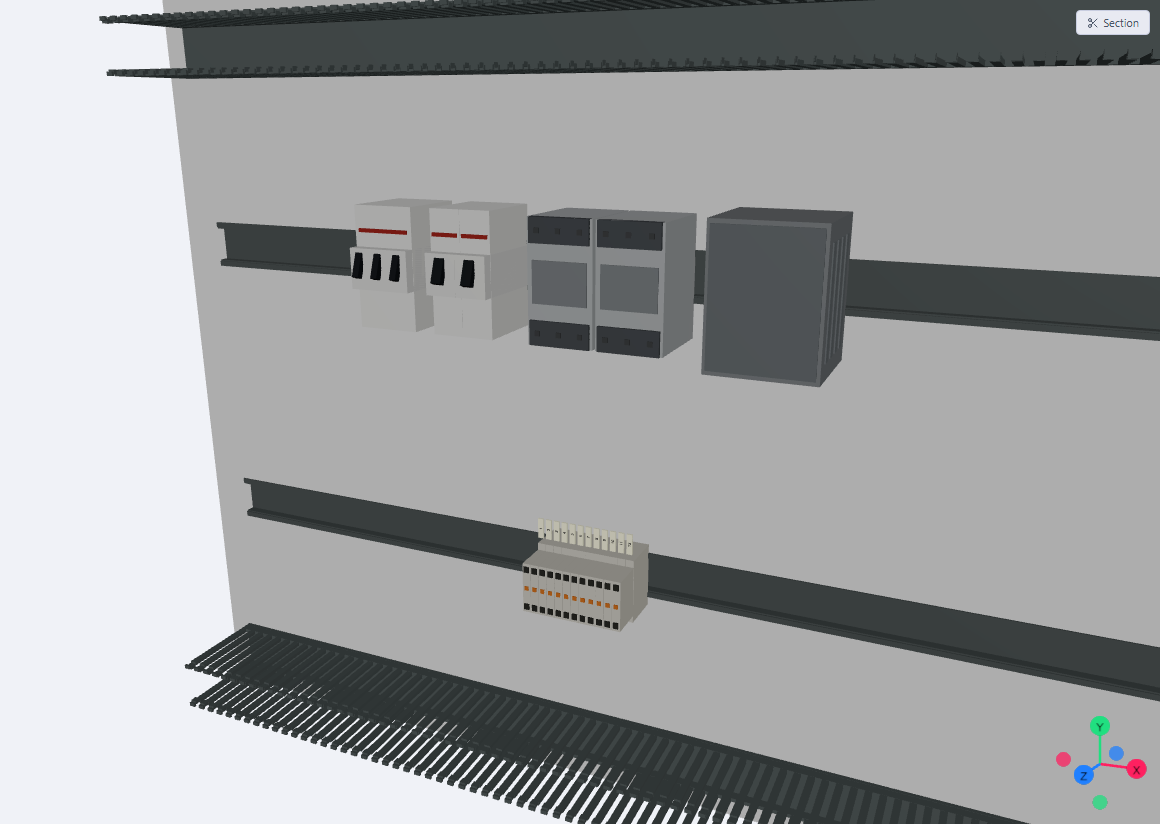

Flip the same layout into 3D — backplate, slotted finger duct and DIN rail render as solid, true-to-size geometry. Import manufacturers’ STEP files for exact component models; parts without one still render as recognisable device bodies.
VIEW D — BILL OF MATERIALS

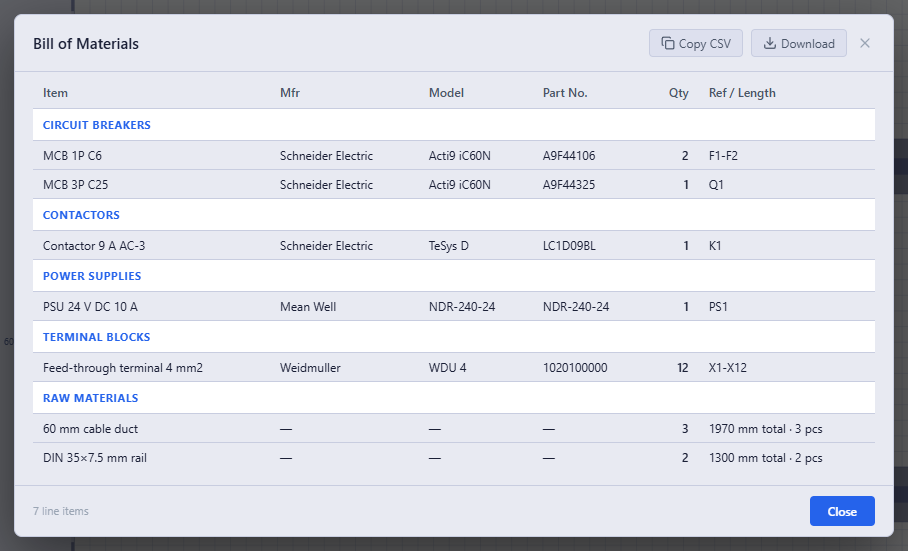

Every placed part is counted, referenced and totalled the instant it lands — including duct and rail cut lengths. Copy the table or download CSV for purchasing.
CLOUD LIBRARY
Set a part up once — dimensions, mounting, 3D model — and every panel after that is faster than the last.
Parts and configurations shared across your organisation, so every designer draws from the same shelf.
A part added at one desk appears at every other, live. No exports, no emailed libraries.
A public parts catalogue — publish parts and import what others share, on every plan, including Free.
PRICING
For a single engineer
US$0
For teams and switchboard shops
US$39 / user / month
or US$390 / user / year
Every new organisation starts with a 14-day Pro trial. No card required.
